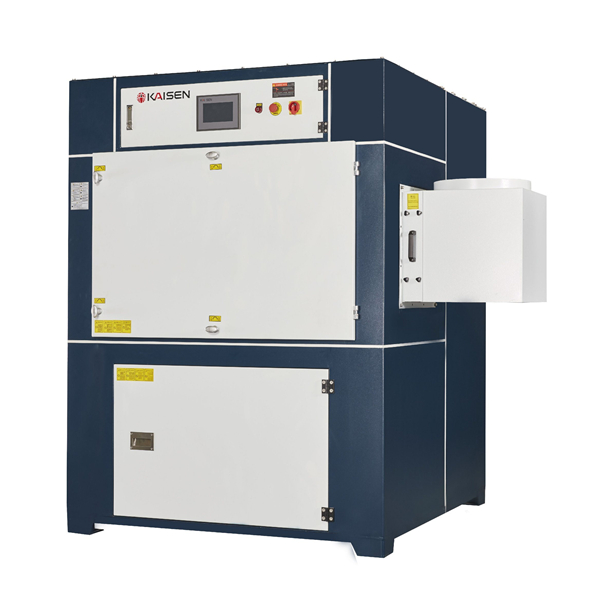

KSDC-8606B/B1 Centralized Dust Collector

Description

Introduction:

86 series central dust collectors are the second generation of Kaisen centralized dust collector, which is more versatile. Upgraded PLC system supports multi-languages and easy to operate. Meanwhile, its compact design, small foot-print and high filtration efficiency are also favored by many laser machine manufacturers at home and abroad.

Parameters:

Model	KSDC-8606B/B1
Fan Air Flow	8000/12000±500  m3/h
Inlet Air Flow	6500/9500m3/h
Motor Power	7.5/11KW
Power Supply	3x380V/50Hz
Filter Material	Polyester + PTFE
Filtration Area	90㎡
Filtration Efficiency	≥99.9%
Filtration Precision	≥0.3um
Filter Cartridge	6 Pcs
Cleaning Method	Automatic cleaning
Compressed Air	0.5~0.6Mpa
Noise Level	≤75±5 dB
Dimension (WxDxH)	1620×1750×2150mm
Weight	1050/1120±20kg

Options & Accessories:

Independent electric control cabinet

Frequency converter

Explosion proof device

Anti-static filter cartridge

Ducting accessories

Spiral duct

Applications:

Multi-uints welding central dust collector

HAN'S Laser cutting dust collector case

Robot welding house fume disposal solution

Steel pipe plasma cutting disposal solution

ATEX Type central dust collector case

Plasma cutting dust collector case
